MacroSim Documentation

MacroSim is a python library aimed at creating symbloic models of economic variables thgough PySR's PySRRegressor. It utilizes a FRED series accessor and a cunstomizable equation search engine to find an accurate smybolic representation of the selected variavle using the features retrieved from FRED series. MacroSim contains a simulation engine that has the capability to extrapolate the given data points using fully symbolic, per-variable growth rate equations.

MacroSim's main focus is not on producing the most accurate output, but to ensure explorability of outputs for research purposes. Both the symbolic regression results and the fitted growth equations prioritize interpretability. Although kinks are often produced in the output extrapolation process, the equations themselves are configured to be differenciable in most cases.

Installation

MacroSim can be installed through pip; and the builds are available in the github repo if you prefer to install it manually. The pip command required to retireve MacroSim is:

python -m pip install macrosim

Example Usage

Production function modelling (I believe) can be one of the most common use cases for MacroSim, and it will be the example of choice here. Let's assume we're looking into modelling real GDP as a function of:

  • Labor Participation Rate
  • Capital Investment
  • Net Exports
  • CPI
  • Population Growth
  • Real Wage

Data Retrieval

The first step would be to retrieve data for the above-mentioned metrics from FRED using macrosim.SeriesAccessor.

from macrosim import SeriesAccessor
import datetime as dt

fred = SeriesAccessor(
    key_path='../fred_key.env',
    key_name='FRED_KEY'
)

start = dt.datetime.fromisoformat('2002-01-01')
end = dt.datetime.fromisoformat('2024-01-01')

df = fred.get_series(
    series_ids = ['NETEXP', 'CIVPART', 'CORESTICKM159SFRBATL', 'LES1252881600Q', 'SPPOPGROWUSA', 'A264RX1A020NBEA', 'GDPC1'],
    series_alias=[None, None, 'CPI', 'RWAGE', 'POPGROWTH', 'I_C', 'RGDP'],
    reindex_freq='QS',
    date_range=(start, end),
)

reindex_freq='QS' reformats all data to quarterly frequency, introducing NaN values if the original series is updated less frequently. The reindexing operation matches the frequency of all variables to the target. (being real GDP) We can deal with the NaN values, again, using macrosim.SeriesAccessor.

df = fred.fill(
    data=df,
    methods=[None, None, None, None, 'ffill', 'divide', None]
)

In the example, only 2 of the series had data that's less frequent than quarterly. Here, the elected built-in fill methods are specified in string literals. (refer to MacroSim Docs for detailed information) We now have a dataset free of NaNs and ready for symbolic regression

Symbolic Regression

The symbolic regression backend of MacroSim relies on the PySR library which provides a regressor written in julia, (a compiled language) and a python interface. macrosim.EqSearch is a class that takes the pysr.PySRRegressor as its base and extends it by including model distillation and LOF outlier detection features. (Reasons behind opting for distillation and LOF based outlier removal are discussed further below)

Having our dataset, we can conduct a symbolic search to derive the most accurate representation of real GDP within the constraints that we define.

from macrosim.EqSearch import EqSearch

eqsr = EqSearch(
    X= df.drop('RGDP', axis=1),
    y= df['RGDP']
)
eqsr.distil_split()
eqsr.search()

eq = eqsr.eq

EqSearch.distil_split was called to filter out the outliers with LOF and distil the target variable through a Random Forest regressor. The aggressive outlier handling implemented ensures that the symbolic regression will target a more general scope instead of attempting to predict shocks at fit time. The following call to EqSearch.search initiates the symbolic regression; no constraints were defined here, but you can refer to the documentation for a detailed explanation of how to set them. We now have the core component for our simulation engine, the main equation that will be responsible for mapping our inputs to outputs. However, we are yet to explore the growth patterns of our input variables. We need to define functions that will govern how our inputs evolve over \(n\) steps of simulation.

Input Growth Modelling [Proof of Concept!!]

macrosim.GrowthDetector is responsible for deriving growth functions for each input variable. Using the historical data we have, pre-defined parametrized growth functions are fitted to the data and the best fitting functions are selected for each variable on the basis of MSE.

from macrosim import GrowthDetector

gd = GrowthDetector()
opt = gd.find_opt_growth(df.drop('RGDP', axis=1))
print(opt)

>>> {'NETEXP': (Logarithmic(x, 579.61, 0.0, 1.0, 170.21), MSE = 20050.11),
 'CIVPART': (Linear(x, -0.06), MSE = 0.38),
 'CPI': (Logarithmic(x, 1.85, 1.13, 1.0, 0.03), MSE = 1.22),
 'RWAGE': (Exponential(x, 1.0, 0.0), MSE = 119.37),
 'POPGROWTH': (Exponential(x, 1.02, -0.02), MSE = 0.02),
 'I_C': (Exponential(x, 1.02, -1.46), MSE = 409.61)}

We can see that GrowthDetector.find_opt_growth returns a dictionary of tuples. Index 0 of the tuples contain a function with a custom __repr__ method to signify the nature and parameters of the function that best describes the growth of said variable. Index 1 contains the MSE value (np.float64) obtained at fit time. (again, with a formatted __repr__ method) This gives us all we need to initiate the simulation.

Simulating the derived scenario

The simulation engine is built as a non-exhaustible generator that will recursively apply the growth functions and derive an output using the symbolic regression result.

from macrosim import SimEngine

initial_params = {
    col: (df[col].iloc[0], opt[col][0]) for col in df.columns[:-1]
}

engine = SimEngine(
    eq=eq,
    init_params=initial_params,
    deterministic=True,
    entropy_coef=0.01
)

for _ in range(50):
    next(engine._simulate())

output_df = engine.get_history()

As the first step, we defined the initial values and growth functions that will govern them as a tuple for each column. will be inputted to the generator logic. We used the first index of our historical data (the most recent observations) to be able to compare our results with the real observations. (We could've used the most recent observations to simulate future periods.) Then, an instance of macrosim.SimEngine was declared with the necessary parameters. The chosen entropy coefficient was 0.01 (this value defines the average extent of noise as a percentage of the variables) so we expect to see shocks (noise) that's 1% of the values computed by the growth functions in both positive and negative directions. Using entropy_coef=0 will completely disable the noise and will allow a clean inspection of growth function behavior.

A Peak at the Results

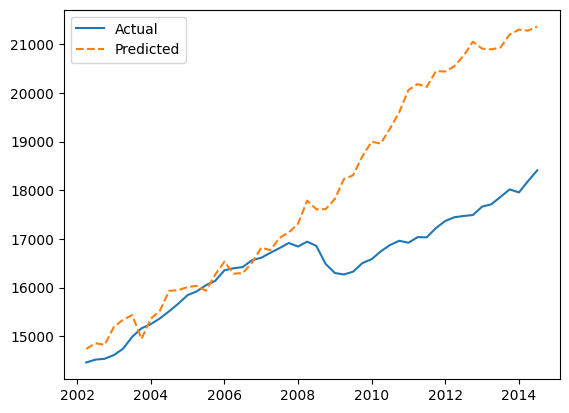

By plotting the simulated data against the real observations, we can check the performance. Due to insufficient accuracy of growth functions (for now) accurate results are not expected. Plotting the simulation confirms this:

Simulation Results

We can see that the results were relatively accurate until the 2008 crisis. (it honestly performed better than I expected) The growth functions are called recursively, and we used a minimal amount of randomized entropy. This meant that we didn't stand a chance against a massive shock. The engine simply preserved the expected state as defined by the symbolic expressions.

Comments

As seen in the example, the current state of MacroSim is not well suited for stochastic shocks. After the implementation of more advanced growth modelling techniques, this issue will also be addressed. The current example showed that a symbolic regression and simulation pipeline has the power to (at the very least) preserve the state of an economy over time. As improvements and additions are implemented, MacroSim can become a gateway to utilise a regression model that was built for natural sciences and take it to the realm of economic simulation.
